G-Flash
The ultimate "flashrom" GUI for macOS.
G-Flash is a graphical user interface for the popular open source program "flashrom“ with which it is possible to read out contents of microchips or to flash / write on them. A variety of programmers are supported. G-Flash offers a GUI that focuses exclusively on the USB programmer. 22 of them are supported by "flashrom" and thus also by G-Flash.

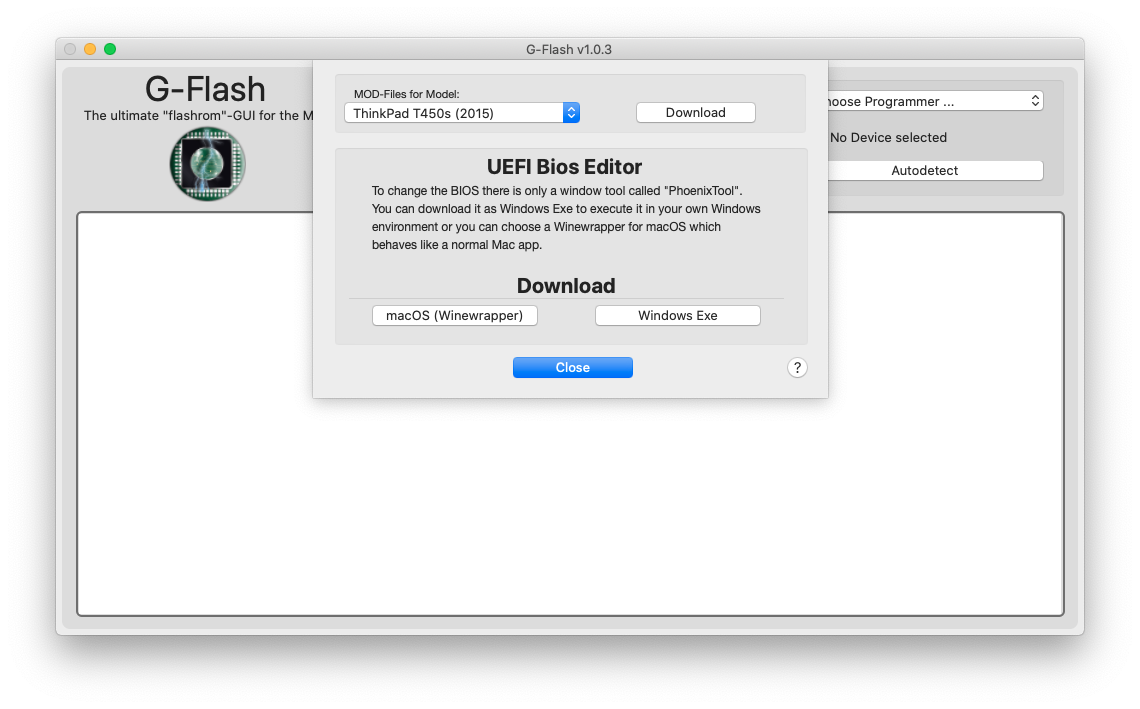

G-Flash also offers one BIOS Modding Section that specializes in this e.g. remove whitelists from Lenovo® laptops. Patches for various ThinkPad models are already included. The appropriate program (PhoenixTool) to maintain the patches in the BIOS is also included ready for use.
>>> Download (mind. 10.10) <<<
Source: Github
Which USB programmers are supported?
| Programmer | Vendor | Device | ID |
|---|---|---|---|
|
ft2232_spi |
FTDI |
FT2232H |
0403:6010 |
|
ft2232_spi |
FTDI
|
FT4232H
|
0403:6011 |
|
ft2232_spi |
FTDI |
FT232H |
0403:6014 |
|
ft2232_spi |
TIAO |
USB Multi-Protocol Adapter |
0403:8a98 |
|
ft2232_spi |
TIAO |
USB Multi-Protocol Adapter Lite |
0403:8a99 |
|
ft2232_spi |
Amontec |
JTAGkey |
0403:cff8 |
|
ft2232_spi |
GOEPEL |
PicoTAP |
096c:1449 |
|
ft2232_spi |
Google |
Servo |
18d1:5001 |
|
ft2232_spi |
Google |
Servo V2 Legacy |
18d1:5002 |
|
ft2232_spi |
Google |
Servo V2 |
18d1:5003 |
|
ft2232_spi |
FIC |
OpenMoko Neo1973 Debug board (V2+) |
1457:5118 |
|
ft2232_spi |
Olimex |
ARM-USB-OCD |
15ba:0003 |
|
ft2232_spi |
Olimex |
ARM-USB-TINY |
15ba:0004 |
|
ft2232_spi |
Olimex |
ARM-USB-OCD-H |
15ba:002b |
|
ft2232_spi |
Olimex |
ARM-USB-TINY-H |
15ba:002a |
|
dediprog |
Dediprog |
SF100/SF200/SF600 |
0483:dada |
|
developerbox |
Silicon Labs |
CP2102N USB to UART Bridge Controller |
10c4:ea60 |
|
usbblaster_spi |
Altera |
USB-Blaster |
09fb:6001 |
|
pickit2_spi |
Microchip |
PICkit 2 |
04d8:0033 |
|
ch341a_spi |
Winchiphead (WCH) |
CH341A |
1a86:5512 |
|
digilent_spi |
Digilent |
Development board JTAG |
1443:0007 |
|
Content |
Content |
STLINK-V3 |
0483:374f |
